Junqi 20mm Brushless Flat Motor 20BLW14 12V 5W Hihg speed 5000rpm, 0.008Nm
Quick Details:
| Model | Frame Size | Rated Power W) | Body Length (mm) | Rated Voltage (VDC) | Rated Torque (Nm) | Rated Current (A) | Rated Speed (RPM) |
| JQ20BLW14-12V | 20mm | 5 | 14 | 12 | 0.008 | 0.63 | 5170 |
Features:
1. Wide speed range, Smooth torque output
2. Excellent Speed Stability
3. Compact and High Power
4. High Efficiency and Energy-Saving.
General Specification:
| Item | Specification |
| Winding Type | Star Connection |
| Hall Effect Angle | Electrical Angle of 120 degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 5.3N( 5mm from the flange) |
| Max.Axial Force | 1.8N |
| Dielectric Strength | 360VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electric Connection:
| Pin No. | Connector | Functions |
| 1 | FPC Cable | Vcc Hall +5Vdc |
| 2 | | Hall C |
| 3 | | Hall A |
| 4 | | Hall B |
| 5 | | GND Hall |
| 6 | | Phase W |
| 7 | | Phase V |
| 8 | | Phase U |
Electricl Specification:
| Item | Unit | JQ20BLW14-12V |
| Number of poles | | 8 |
| Number of Phase | | 3 |
| Rated Voltage | VDC | 12 |
| Rated Torque | N.m | 0.008 |
| Continuous stall torque | mN.m | 9.1 |
| Rated Speed | RPM | 5170 |
| Rated Power | W | 5 |
| Peak Torque | mN.m | 19 |
| Peak Current | A | 1.62 |
| Line to Line resistance | ohms@20℃ | 7.2 |
| Line to Line Inductance | mH | 0.62 |
| Torque Constant | nN.m/A | 12 |
| Back EMF | Vrms/KRPM | 0.89 |
| Rotor Inertia | g.cm2 | 5.1 |
| Motor Length | mm | 14 |
| Weight | g | 23 |
**Notes: The motor can be designed &manufactured with customized request!!

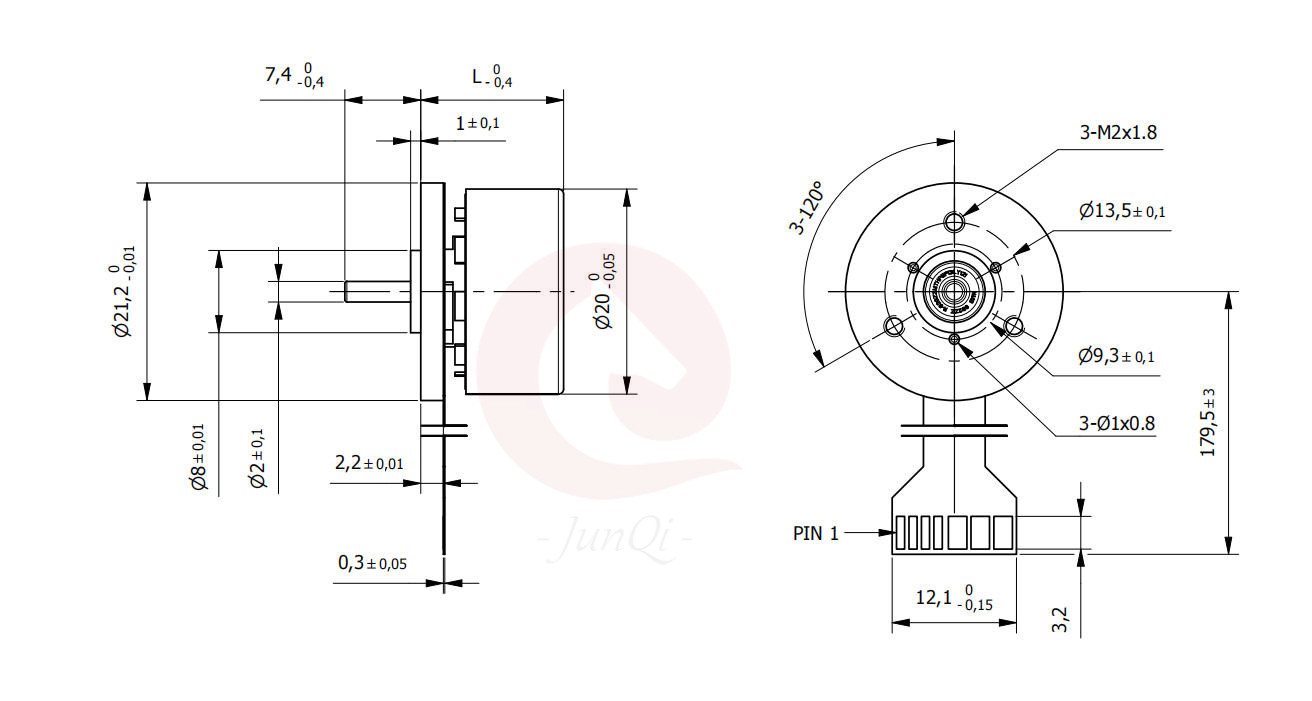

Mechanical Size:
